IFM Magnetic-inductive Flow Meter SM7004 SMR34GGX50KG/US100

Brand Name : IFM

Model Number : SM7004

Certification : CE

Place of Origin : china

MOQ : 1

Price : USD$1520

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500pc

Delivery Time : in stock

Packaging Details : carton

Measuring range : 0.2...50 l/min

System : gold-plated contacts

Medium temperature [°C] : -10...70

Pressure rating [MPa] : 1.6

Contact Now

Product characteristics

Number of inputs and outputs

Number of analog outputs: 2

Measuring range

0.2...50 l/min

0.02...13.22 gpm

Process connection

threaded connection G 3/4 DN20 flat seal

Application

System

gold-plated contacts

Application

for industrial applications

Installation

connection to pipe by means of an adapter

Media

Conductive liquids; water; water-based media

Note on media

conductivity: ≥ 20 µS/cm

viscosity: < 70 mm²/s (40 °C)

Medium temperature [°C]

-10...70

Pressure rating [bar]

Pressure rating [MPa]

1.6

MAWP (for applications according to CRN) [bar]

11.2

Electrical data

Operating voltage [V]	20...30 DC; (to SELV/PELV)
Current consumption [mA]	120; (24 V)
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	5

Inputs / outputs

Number of inputs and outputs	Number of analog outputs: 2

Outputs

Total number of outputs	2
Output signal	analog signal
Number of analog outputs	2
Analog current output [mA]	4...20; (scalable)
Max. load [Ω]	500
Overload protection	yes

Measuring/setting range

Measuring range

0.2...50 l/min

0.02...13.22 gpm

Display range

-60...60 l/min

-15.86...15.86 gpm

Resolution

0.1 l/min

0.02 gpm

Analog start point ASP

0...40 l/min

0...10.58 gpm

Analog end point AEP

10...50 l/min

2.64...13.22 gpm

In steps of

0.1 l/min

0.02 gpm

Temperature monitoring

Measuring range [°C]	-20...80
Resolution [°C]	0.2
Analog start point [°C]	-20...60
Analog end point [°C]	0...80
In steps of [°C]	0.2

Accuracy / deviations

Flow monitoring

Accuracy (in the measuring range)	± (2 % MW + 0,5 % MEW)
Repeatability	± 0,2% MEW

Temperature monitoring

Accuracy [K]	± 2,5 (Q > 1 l/min)

Reaction times

Flow monitoring

Response time [s]	0.15; (dAP = 0, T19)
Damping process value dAP [s]	0...3

Temperature monitoring

Dynamic response T05 / T09 [s]	T09 = 20 (Q > 1 l/min)

Operating conditions

Ambient temperature [°C]	-10...60
Storage temperature [°C]	-25...80
Protection	IP 67

Tests / approvals

EMC

DIN EN 60947-5-9

500 V withstand voltage (V DC)

CPA approval

model number	008MI
accuracy class	-
maximum allowable error	± 2,5 % FS
Q (min)	0,01 m³/h
Q (t)	-
Q (max)	3 m³/h

Shock resistance

DIN IEC 68-2-27

20 g (11 ms)

Vibration resistance

DIN IEC 68-2-6

5 g (10...2000 Hz)

MTTF [years]

175

Pressure equipment directive

sound engineering practice; can be used for group 2 fluids; group 1 fluids on request

Mechanical data

Weight [g]	521.2
Housing	tubular
Dimensions [mm]	Ø 54 / L = 110
Material	stainless steel (1.4404 / 316L); PBT-GF20; PC; FKM; TPE
Materials (wetted parts)	stainless steel (1.4404 / 316L); PEEK; FKM
Process connection	threaded connection G 3/4 DN20 flat seal

Displays / operating elements

Display

Display unit	6 x LED, green (l/min, m³/h, gpm, gph, °C, °F)
Measured values	alphanumeric display, 4-digit
Programming	alphanumeric display, 4-digit

Display unit

l/min; m³/h; gpm; gph; °C; °F

Remarks

MW = Measured value

MEW = Final value of the measuring range

Pack quantity

1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A; Contacts: gold-plated

Product Tags:

Magnetic-inductive flow meter IFM

Magnetic-inductive flow meter SMR34GGX50KG/US100

Magnetic-inductive flow meter SM7004

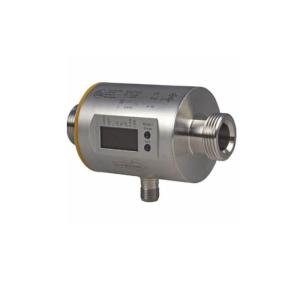

IFM Magnetic-inductive Flow Meter SM7004 SMR34GGX50KG/US100 Images
