Dwyer Series ADPS Adjustable Differential Pressure Switch ADPS-03-2-N

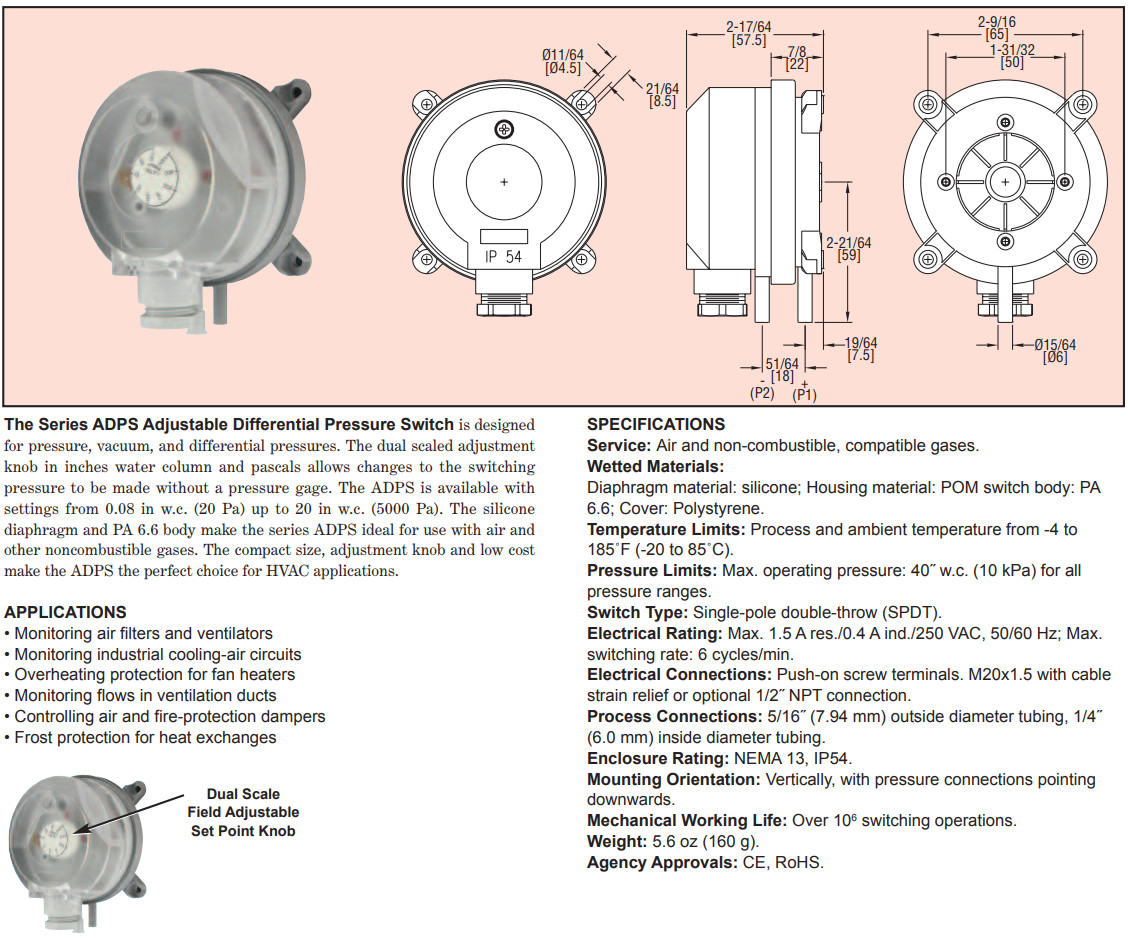

The Series ADPS Adjustable Differential Pressure Switch is designed for pressure, vacuum, and differential pressures. The dual scaled adjustment knob in inches water column and pascals allows changes to the switching pressure to be made without a pressure gage. The ADPS is available with settings from 0.08 in w.c. (20 Pa) up to 20 in w.c. (5000 Pa). The silicone diaphragm and PA 6.6 body make the series ADPS ideal for use with air and other noncombustible gases. The compact size, adjustment knob and low cost make the ADPS the perfect choice for HVAC applications.
APPLICAtIONS
• Monitoring air filters and ventilators
• Monitoring industrial cooling-air circuits
• Overheating protection for fan heaters
• Monitoring flows in ventilation ducts
• Controlling air and fire-protection dampers
• Frost protection for heat exchanges
SPECIFICAtIONS
Service: Air and non-combustible, compatible gases.
Wetted Materials: Diaphragm material: silicone; Housing material: POM switch body: PA 6.6; Cover: Polystyrene.
Temperature Limits: Process and ambient temperature from -4 to 185˚F (-20 to 85˚C).
Pressure Limits: Max. operating pressure: 40˝ w.c. (10 kPa) for all pressure ranges.
Switch type: Single-pole double-throw (SPDT).
Electrical Rating: Max. 1.5 A res./0.4 A ind./250 VAC, 50/60 Hz; Max. switching rate: 6 cycles/min.
Electrical Connections: Push-on screw terminals. M20x1.5 with cable strain relief or optional 1/2˝ NPT connection.
Process Connections: 5/16˝ (7.94 mm) outside diameter tubing, 1/4˝ (6.0 mm) inside diameter tubing.
Enclosure Rating: NEMA 13, IP54.
Mounting Orientation: Vertically, with pressure connections pointing downwards.
Mechanical Working Life: Over 106 switching operations.
Weight: 5.6 oz (160 g). Agency Approvals: CE, RoHS.

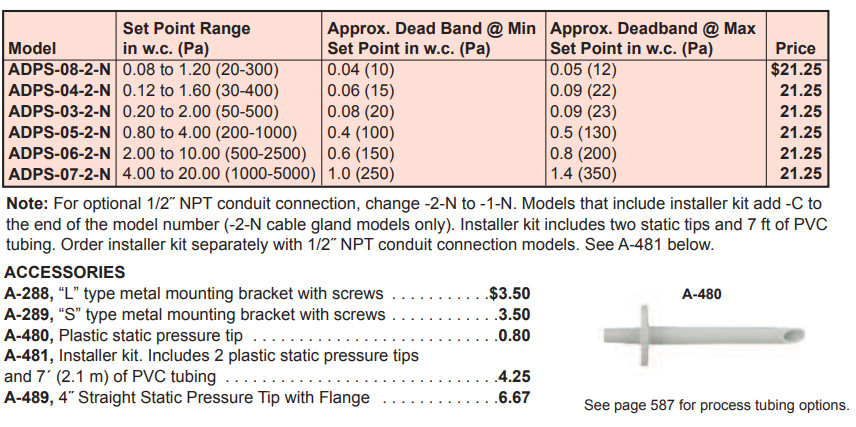

| item | value |
| Certification | CE |
| Place of Origin | EU |
| Brand Name | Dwyer |
| Model Number | ADPS-03-2-N |
| Max. Working Pressure | 10 kPa |
| Temperature | -4 to 185 F (-20 to 85 C) |
| Switch type | Single-pole double-throw (SPDT) |
| Electrical Connections | Push-on screw terminals |
| Process Connections | 7.94 mm |
| Enclosure Rating | NEMA 13, IP54 |
| Weight | 5.6 oz (160 g) |
| Color | White |
| Contact rating | 250VAC/1.5A(0.4A) |
| Mounting position | Vertical |
| Condition | 100% Original |
