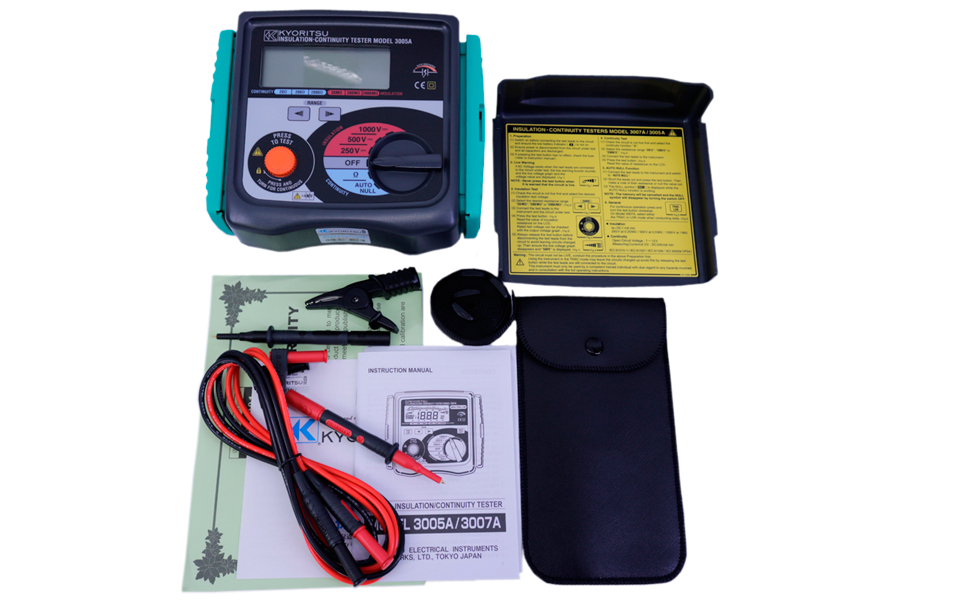

Kyoritsu 3005A Digital Insulation/Continuity Testers Test Voltage 250V/500V/1000V

Brand Name : Kyoritsu

Model Number : 3005A

Certification : CE

Place of Origin : china

MOQ : 1

Price : USD$308

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500pc

Delivery Time : in stock

Packaging Details : carton

Brand : Kyoritsu

Power Source : Battery Powered

Style : Digital

Color : Black&Blue

Item model number : KEW 3005A

Contact Now

Product Description

Kyoritsu 3005A Digital Insulation/Continuity Testers Test Voltage 250V/500V/1000V

Kyoritsu 3005A Digital Insulation/Continuity Testers Test Voltage 250V/500V/1000V

• Bargraph to display insulation resistance. • Displays the value of external AC voltage along with flashing symbol. • Auto null function to automatically subtract the test lead resistance before displaying the real continuity resistance value. • Live circuit warning beeper. • Releasing the test button automatically discharges the charges stored in the circuit under test. • 200mA continuity measuring current to IEC 61557. • Minimum 1mA current on insulation tests to IEC 61557.

Insulation RGeneral

AC voltage range 0 - 600V AC
Accuracy ±5%rdg±3dgt
Safety Standard IEC 61010-1 CAT III 300V Pollution Degree 2 , IEC 61010-2-031 IEC 61557-1/2/4
IP Rating IEC 60529-IP54
EMC Standard IEC 61326-1
Power source R6 (AA) (1.5V) × 8
Dimensions 167(L) × 185(W) × 89(D)mm
Weight 970g approx
Included Accessories 7122B (Test leads) Pouch for test leads, 8923 (F500mA/600V fuse) × 2 , Shoulder Strap ,Instruction Manual

esistance

Test voltage 250V/500V/1000V
Measuring range (Mid-scale value) 20MΩ/200MΩ/2000MΩ
Output voltage on open circuit Rated test voltage+20%, -0%
Nominal current 1mA DC min.
Output short circuit current 1.5 mA DC approx.
Accuracy

±1.5%rdg±5dgt (20MΩ/200MΩ) , ±10%rdg±3dgt (2000MΩ)
