Leuze Electronic Diffuse Reflection Sensor HRT 96M/A-1670-800-44

Name: Leuze Electronic Diffuse Reflection Sensor HRT 96MA167080044
Brand: Leuze
Price: 200 USD

China Leuze Electronic Diffuse Reflection Sensor HRT 96M/A-1670-800-44 wholesale

Brand Name : Leuze

Model Number : HRT 96M/A-1670-800-44

Certification : CE

Place of Origin : Germany

MOQ : 1

Price : USD$200/PC

Payment Terms : D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500

Delivery Time : 5-8 work days

Packaging Details : Carton

Type : Diffuse Sensor

Product name : Diffuse reflection light scanner

Protection : IP 67/IP 69K

Application : Industrial

Display : LED

Bias current : ≤ 40mA per sensor

Housing : diecast zinc

Weight : 380g

Connection type : M12 connector

Ambient temp. : -20°C ... +60°C/-40°C ... +70°C

Rating voltage : 250VAC

Condition : Original and new

Contact Now

Leuze Electronic HRT 96 Diffuse Reflection Light Scanner With Background Suppression Leuze Sensor HRT 96M/A-1670-800-44

Diffuse sensor with background suppression, operating range: 0.1-0.8 m, supply voltage: 26.5-31.6 V, m12 connector, red LED light source, includes multiturn potentiometer, IP 67 protection

Series: 96
Operating principle: Scanning principle with background suppression
Operating range, white 90%: 0.1 - 0.8 m
Operating range, gray 18%: 0.1 - 0.77 m
Operating range, black 6%: 0.1 - 0.73 m
Operating range limit, white 90%: 0.1 - 1.2 m
Operating range limit, gray 18%: 0.1 - 1.05 m
Operating range limit, black 6%: 0.1 - 1.14 m
Light source: LED, Red
Switching frequency: 300 Hz
Supply voltage: 26.5 - 31.6 V
Interface type: AS-Interface IO
Type of connection: Connector
Thread size: M12
Number of pins: 4-pin
Design: Cubic
Operational controls: Multiturn potentiometer
Degree of protection: IP 67
Certifications: c UL US

Light scanners with adjustable background suppression using visible red light and infrared light with versatile options such as switching delays, activation input and optics heating.

Complementary outputs, scanning range adjustment and delay before start-up for optimal adaptation to the application
Connection via M12 connector or terminal compartment
Multiple options with switching delays, activation input and optics heating for use at low temperatures
Up to three programmable switching points for short range/distant range

Specification

item	value
Model Number	Leuze HRT 96M/A-1670-800-44
Type	Diffuse Sensor
Place of Origin	Germany
Brand Name	Leuze
Description	Diffuse reflection light scanner
Protection	IP 67/IP 69K
Application	Industrial
Display	LED
Bias current	≤ 40mA per sensor
Housing	diecast zinc
Weight	380g
Connection type	M12 connector
Ambient temp.	-20°C ... +60°C/-40°C ... +70°C
Rating voltage	250VAC
Certificate	CE

Leuze Electronic Diffuse Reflection Sensor HRT 96M/A-1670-800-44

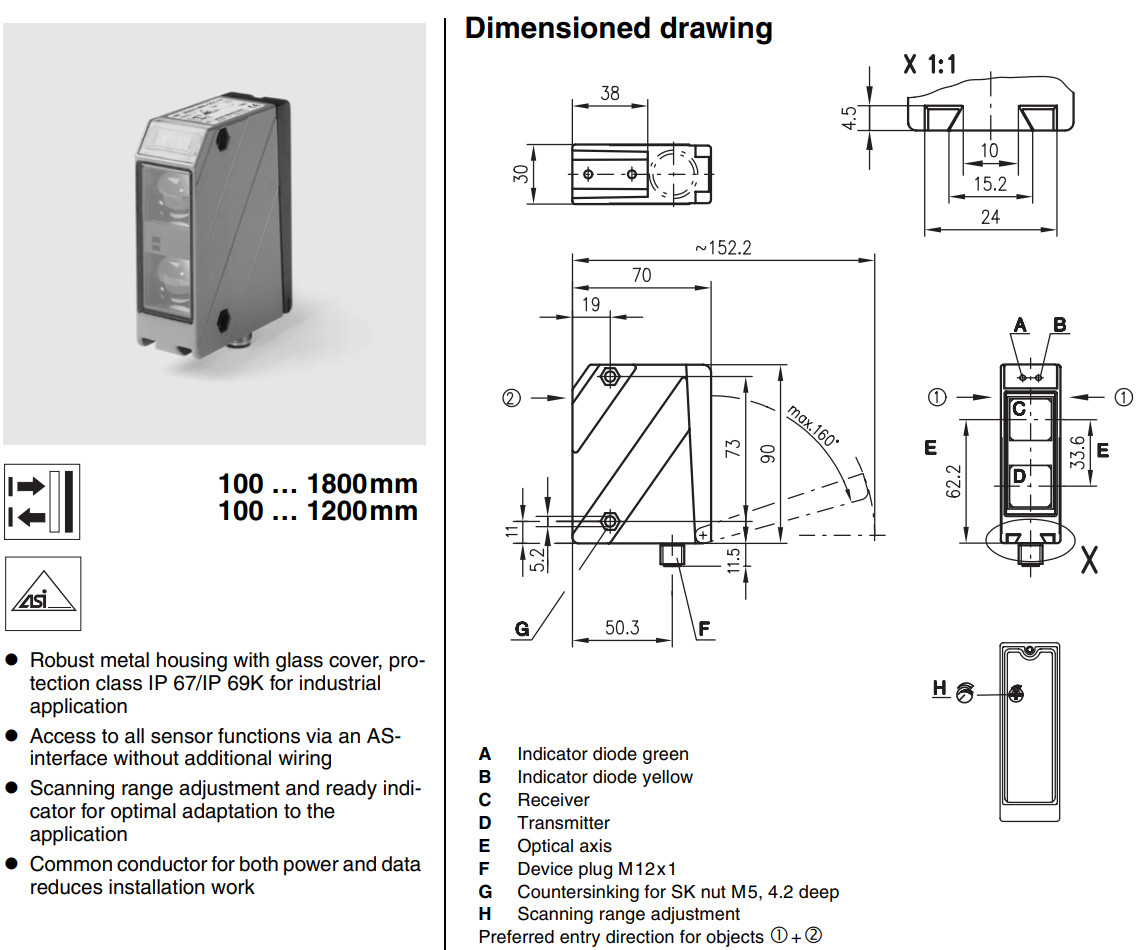

Leuze Electronic Diffuse Reflection Sensor HRT 96M/A-1670-800-44 Images
